Description

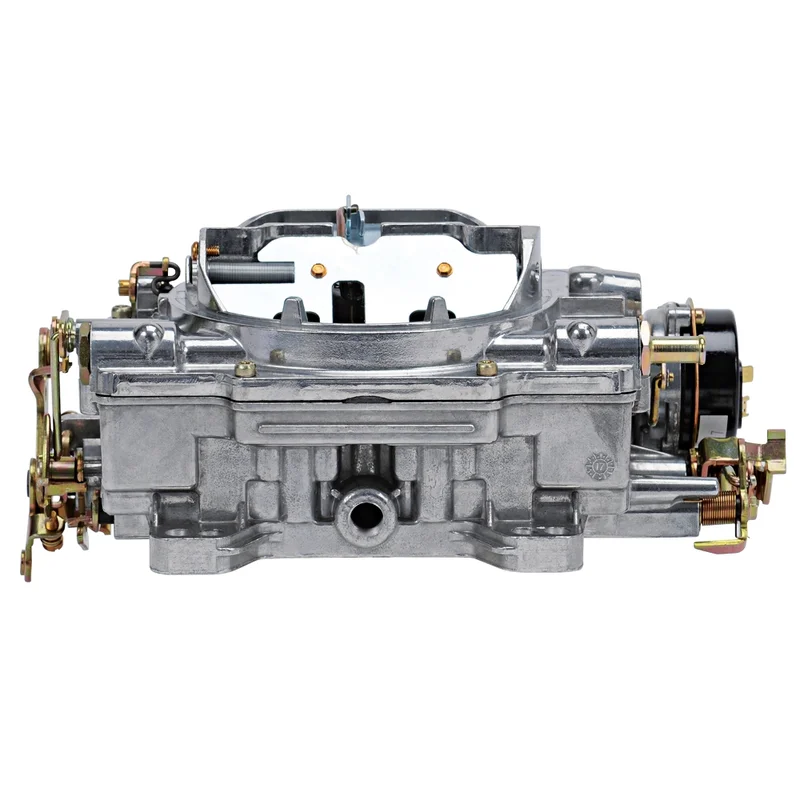

For small cubic-inch single carb applications match with an Performer or Performer EPS manifoldThe Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applicationsmatch with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets – Primary .095Secondary .095Primary Rod .070 x .052orange spring (5′ Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Barrels: 4

Body Height: 3.25″

Booster Type: annular

Bore Diameter: Primary Bore 1.44″

Choke Type: Electric

Condition: New

EGR Port: No

Finish: Satin

Flange Shape: Square

Gasket Or Seal Included: Yes

Main Venturi Diameter: 1.19″

Material: Aluminum

Maximum Flow Rating: 500 2L

Metering Rod Size: .070 x .052″

Primary Jet Diameter: 0.095 Inch

Recommended Use: For Single Carb Applications

Secondary Bore 1.6875″

Secondary Jet Diameter: 0.095 Inch

Series: AVS2

Spring Force: 5″ Hg (Orange)
