Description

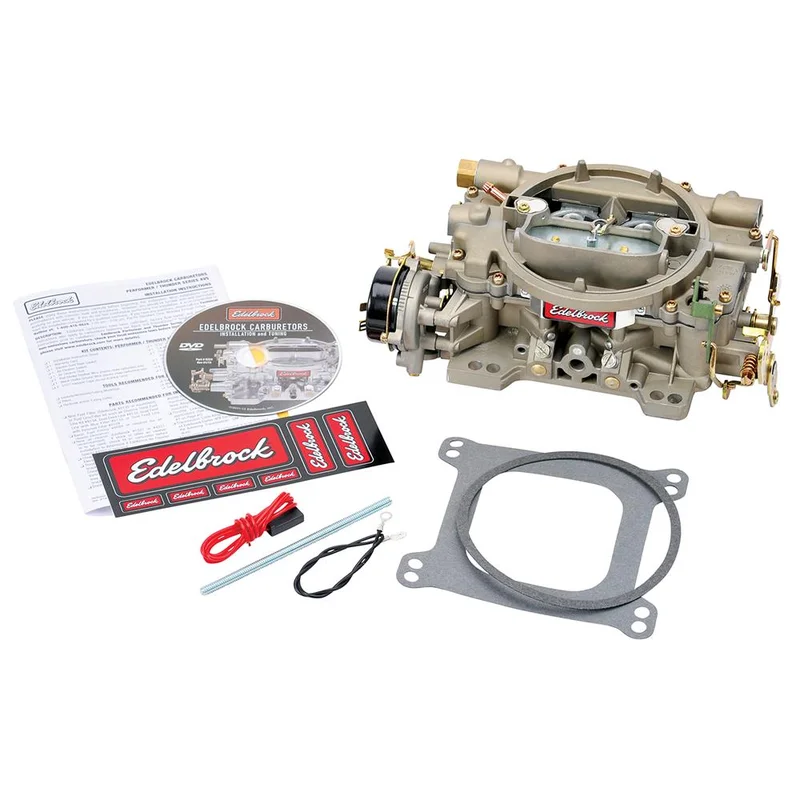

Edelbrock Marine Series 750 cfmSquare-FlangeElectric Choke Carburetor (non-EGR)The Edelbrock 1410 Marine Series 750 CFM electric choke carburetor is a precisely tunedquality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1410 Marine Series 750 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfireswhich means that there are no power valves to blow outand the rods can be changed in seconds without carburetor removal or fuel draining. Secondlythe carburetor has the unique ability to ”hold a tune”so once it is tunedthe carburetor stay’s tuned. What this means to you is that compared to other carburetorsthe performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that’s reliableuser-friendly and is easily tunable for trouble-free operation.

Barrels: 4

Body Height: 3.25″

Booster Type: annular

Bore Diameter: Primary Bore 1.69″

Choke Type: Electric

Condition: New

EGR Port: No

Finish: Zinc-Dichromate

Flange Shape: Square

Gasket Or Seal Included: Yes

Main Venturi Diameter: 1.44″

Material: Aluminum

Maximum Flow Rating: 750 2L

Metering Rod Size: .071 x .047″

Primary Jet Diameter: 0.113 Inch

Secondary Bore 1.69″

Secondary Jet Diameter: 0.107 Inch

Series: Marine

Spring Force: 5″ Hg (Orange)
