Description

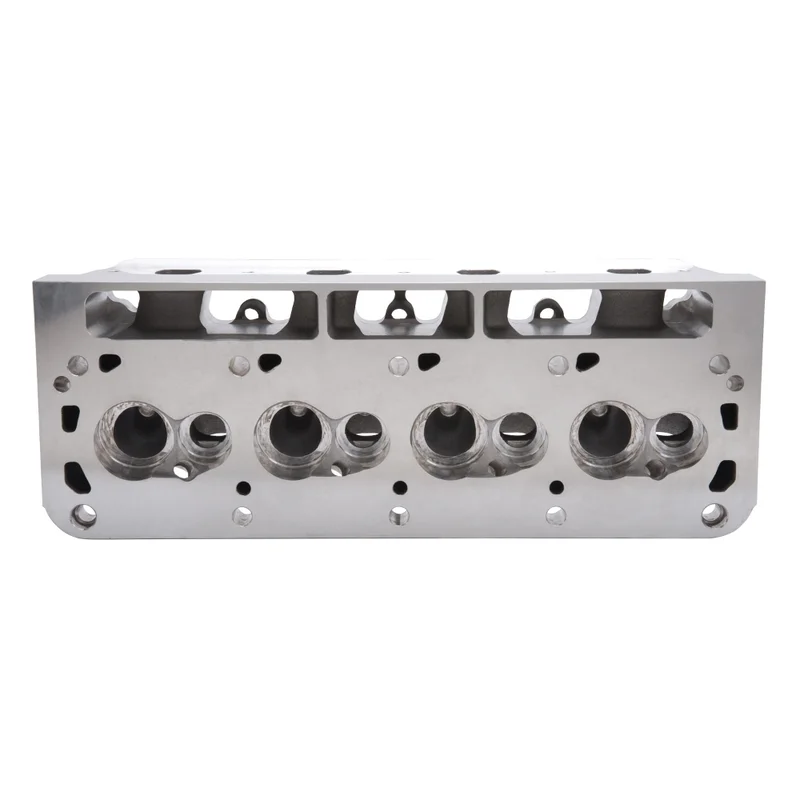

Edelbrock #773169 Pro Port Glidden-Victor II Cylinder Head is for Small-Block Ford Race and Ultra high-performance’s street use. It is designed specifically for the professional cylinder head porter and engine builder. BareHIP Treated.The Edelbrock 773169 Small Block Ford Glidden-Victor II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder headThe Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most casesseats and manganese-bronze valve guides are includedbut not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: – Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder – The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting – The only head designed specifically to accommodate almost any CNC port shapesize or location – Offers enough wall thickness for CNC machining to various port dimensions – In most cases seats and manganese-bronze valve guides are included – Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

CNC Ported: No

Combustion Chamber Volume: Possible 24 CCM

Construction Type: Pro-Port Raw

Deck Thickness: 0.625″

EGR Port: No

Exhaust Port Entry: 1.66 in x 1.43″

Exhaust Valve Diameter: (Suggested) 1.64″

Exhaust Valve Pierce Points (X Y)(C): 1.170 in0.0 Inch

Family: Victor

Grade Type: Performance

Guide Material: Manganese Bronze

Guide Plates Included: No

Head Casting Number: N/A

Intake Port Entry: 1.34 in x 1.77″

Intake Valve Diameter: (Suggested) 2.24″

Intake Valve Pierce Points (X Y)(C): -0.760 in0.0 Inch

Material: Aluminum

Quantity: Sold Individually

Retainer Included: No

Seat Angle: Exhaust 45 deg/Intake 45 DD

Seat Material: Ductile Iron

Series: Pro-Port

Specialty: Hot Isostatic Pressing (HIP) Processing

Valve Angle: 11.3 DD

Valve Guides Included: Yes

Valve Included: No

Valve Seats Included: Yes

Valve Spacing: 1.930 Inch

Valve Springs Included: No
