Description

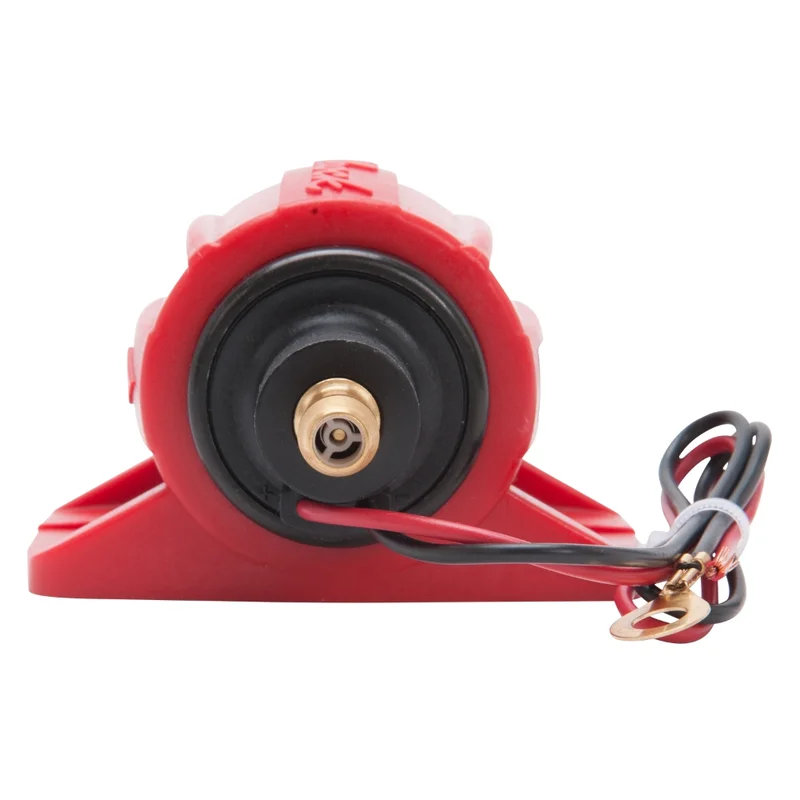

Edelbrock part #17303 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only.Edelbrock part #17303 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 2-3.5 PSI30 GPH for most carbureted applications and is compatible with gasoline and E85. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.

Compatible Fuel Type: Gasoline and E85

Fuel Pump Inlet Type: Hose Barb

Fuel Sending Unit Included: No

Fuel Type: Gas

Gasket Or Seal Included: No

In Tank or External: External

Inlet Type: Hose Barb

Internal Or External: External

Maximum Flow Rating: 114 LPH/30 GPH

Maximum Pressure: 3.5 PS

Minimum Pressure: 2 PS

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Outside Diameter: 0.312 Inch

Outlet Quantity: 1

Outlet Type: Hose Barb

Pump Design: In-line Electric Fuel Pump

Pump Type: Electric

Regulator Included: No

Seal And Lock Ring Included: No

Strainer Included: No

Terminal Type: Lead Wire

Universal Or Specific Fit: Universal

Voltage: 12 2H

Wiring Harness Included: No
