Description

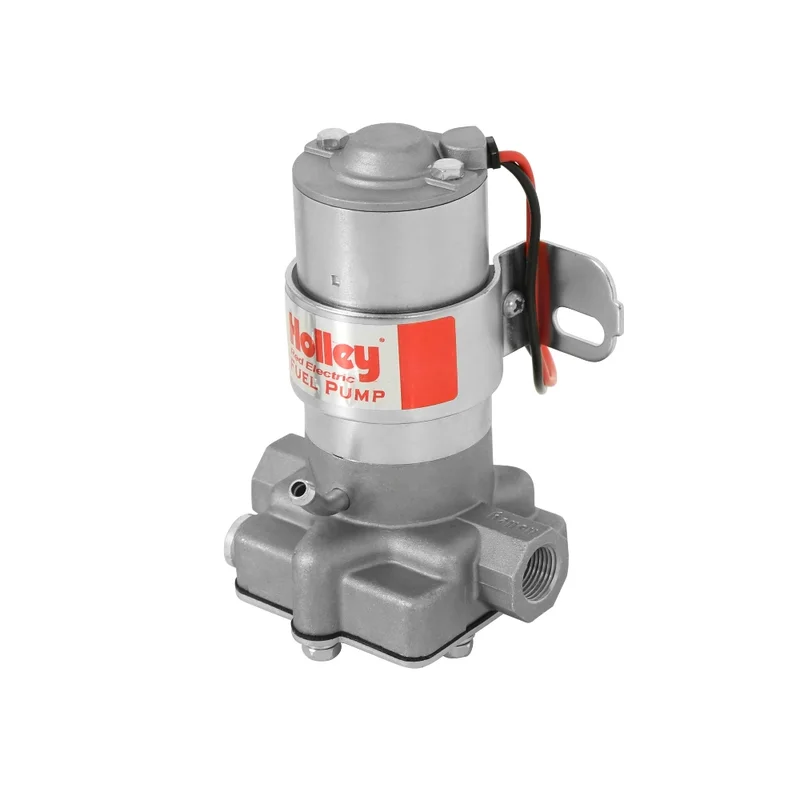

Marine Carbureted Applications Compatible with Gasoline onlyTumble polished billet lookLower housing casting designed for enhanced fuel flow and quiet operationMaximum pressure is 7 psiMotor draws 2 amps current7 1/2 amp fuse recommendedConstant fuel flow with no pulsationImproved design for street/strip applicationsNot designed to be used on aircraft of any type.Distinctive Holley Red®logoFlows 97 GPH (free flow)Flows 71 GPH at 4 psiRegulator is not requiredHas externally accessible pressure relief valve (max 7 psi)Rotor/vane pump design is more tolerant of contaminated fuelsWeighs only 2.88 lbsIncludes Mounting BracketRepair kits are readily availableCan be serviced from the pump endNot compatible with alcohol or methanol fuelsUse of safety shut-off switch, P/N 12-810, strongly recommendedNot designed or recommended for use with fuel injection systemsMeets U.S. Coast Guard regulationsIncludes Fuel/vapor tubeThe world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70’s. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.

Application: Marine

Bracket Color: Silver

Color: Silver

Finish: Zinc

Free Flow GPH: 97

Free Flow LPH: 367

Fuel Delivery Type: Carburetor

Fuel Pump Type: Electric

Fuel Sending Unit Included: No

Fuel System: Carbureted

Fuel Type: Gasoline

Gasket Or Seal Included: No

Grade Type: Performance

Inlet Fitting Thread Size: 3/8″

Inlet Size: 3/8 inch NPT

Inlet Type: NPT

Internal Or External: External

Material: Aluminum

Maximum Amperage Draw:2

Maximum Flow Rating:97

Maximum Pressure: 7 PS

Motor Finish: Silver

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Fitting Thread Size: 3/8 Inch

Outlet Quantity: 1

Outlet Size: 3/8 inch NPT

Outlet Type: NPT

Pump Body Color: Silver

Regulator Included: No

Strainer Included: No

Terminal Quantity: 2

Universal Or Specific Fit: Universal

Voltage: 12 2H

Wire Quantity: 2

Wiring Harness Included: No
