Description

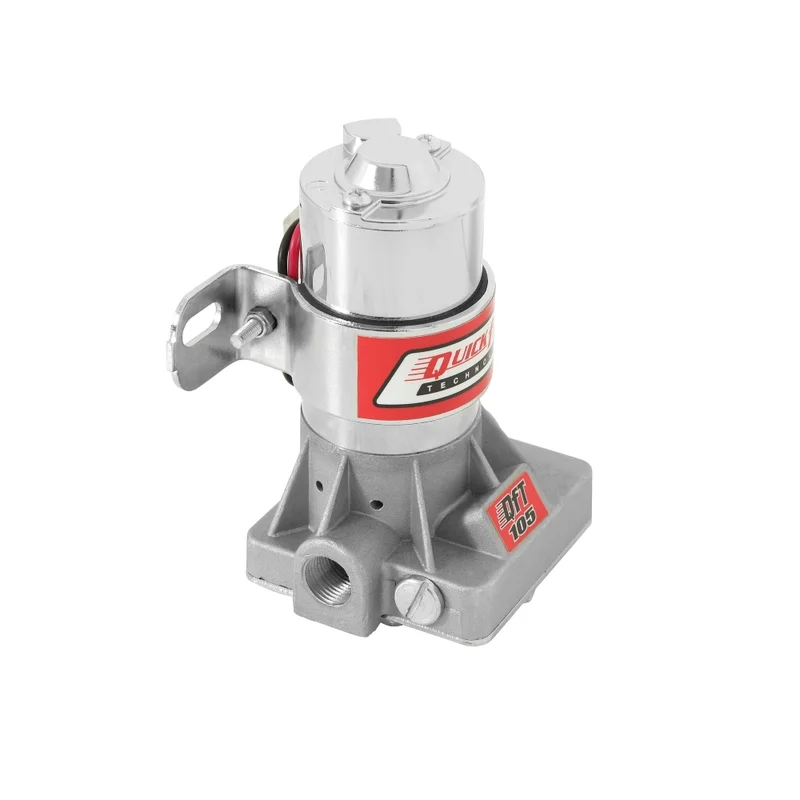

Designed for street/strip applications, the QFT 105 electric fuel pump will provide consistent performance and fuel control. This pump will flow more than enough fuel to support up to 350 HP engines. This pump draws four amps of current and is capable of producing 7 psi of maximum pressure. All mounting hardware and brackets are included.12 Volt105 GPH Flow RateConstructed of Lightweight Steel and Aluminum7 PSI Maximum PressureFeatures 3/8″ NPT Inlets and OutletsExternally Accessible Pressure Relief ValveDraws 4 Amps or Less at Full LoadDesigned for Carbureted Applications OnlyNot compatible for Methanol or E85 Fuels

Average Flow Rating: 105 GPH

Color: Silver

Finish: Zinc

Free Flow GPH: 105

Fuel Delivery Type: Carburetor

Fuel Sending Unit Included: No

Fuel Type: Gasoline

Gasket Or Seal Included: No

Grade Type: Performance

Inlet Thread Diameter: 3/8″

Inlet Type: NPT

Internal Or External: External

Maximum Amperage Draw: 4 68

Maximum Pressure: 7 PS

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: 1

Outlet Thread Diameter: 3/8 Inch

Outlet Type: NPT

Regulator Included: No

Strainer Included: No

Terminal Quantity: 2

Universal Or Specific Fit: Universal

Wiring Harness Included: No
