Description

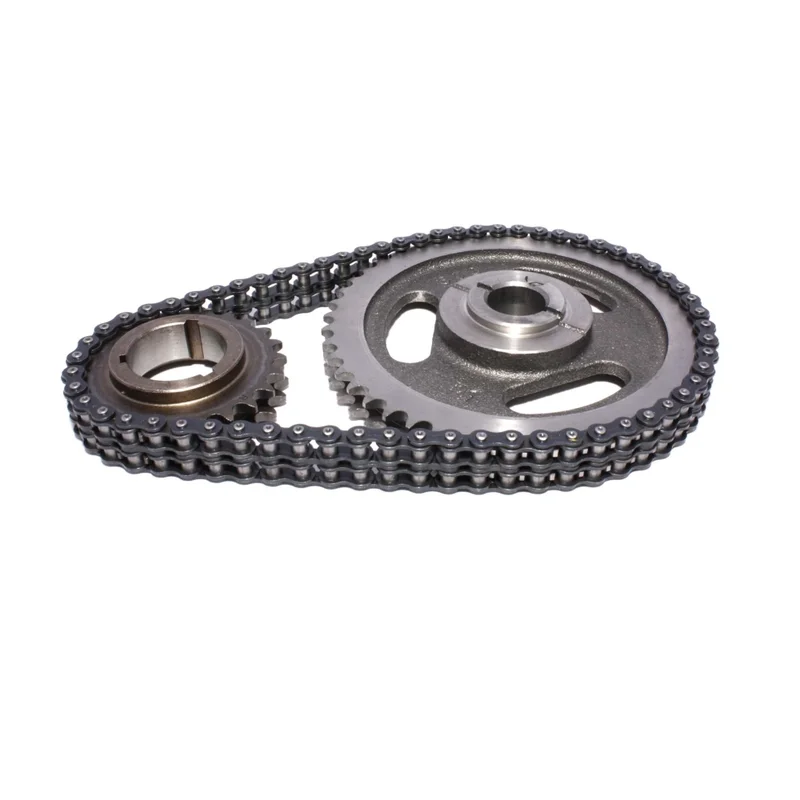

Magnum Double Row Timing Set for ’70-’82 Ford 351C/M and 400MThe Edelbrock Performer 289 #2121 intake manifold is designed for street 260-289-302 c.i.d. Ford V8’s without EGR. Will not fit Boss 302 or 255 c.i.d. V8’s. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000for more info call (865) 966-2269 or go to . The Edelbrock Performer 289 #2121 intake manifold is a dual-planelow-rise intake manifolds with a 180? firing order and patented runner design that you won’t find in other brands. This patented design greatly improves torque over a wide rpm range for excellent throttle responseespecially off-idle through the mid-range. This Performer intake manifold is ideal for passenger carstrucks4x4stow vehicles and RVs. The Edelbrock Performer 289 #2121 also features a natural aluminum finish for a classic look. For the ultimate ”Made in USA” qualityevery Edelbrock intake manifold is cast and machined in the USA.

Installation Notes:

&bull Recommended intake gasket: Edelbrock #7220

&bull Manifold height: A-3.50″B-4.75″

&bull Carb pad height: 4.12″

&bull Port exit dimensions: 1.09″ x 1.84″

&bull 4-Barrel square bore carburetor flange

&bull Due to the design of Performer manifoldsthe throttle and kickdown bracket on some vehicles may require modification to fit. When using Edelbrock carburetorsuse #1490 or #1845 throttle plate kit.

&bull Use RTV sealant to properly seal end sealssuch as Edelbrock High Temp Silicone sealant #1076DO NOT USE END SEALS GASKETS.

&bull Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Camshaft Gear Material: Cast Iron

Chain Type: Double Row

Crankshaft Gear Material: Billet Steel

Engine Family: Ford 351C351M400M (1970-1982)

Maximum Advance: 4 DD

Maximum Retard: 4 DD

Number of Crankshaft Keyways: 3

Replacement Chain Part Number: 2015

Timing Set Series: Magnum
