Description

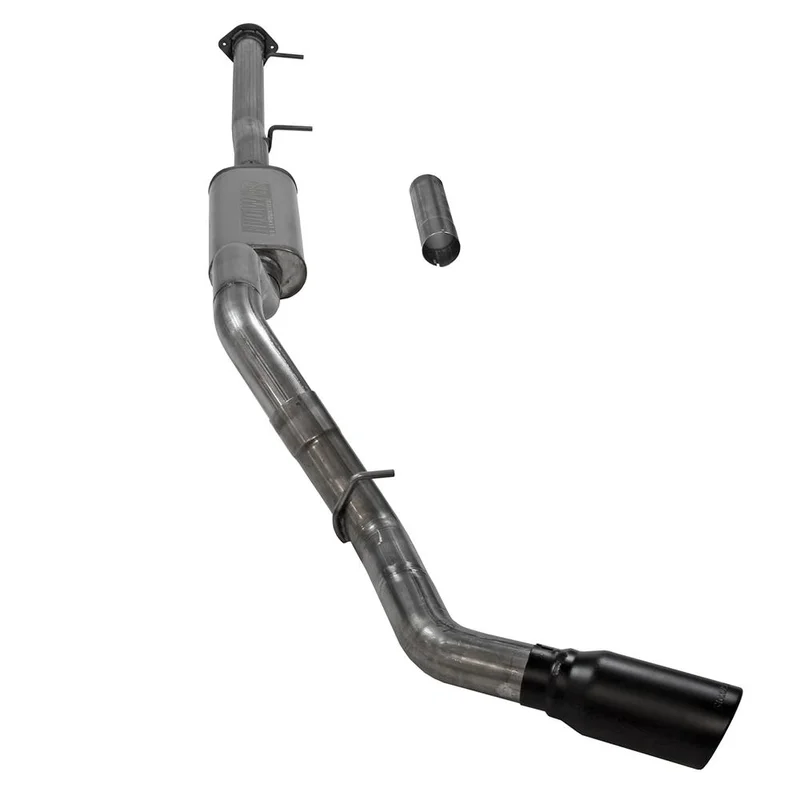

Flowmaster Flow FX Cat-Back Exhaust SystemThe new Flowmaster® Flow FX® cat-back exhaust system for the 2011-2019 GM Silverado/Sierra 2500/3500 HD trucks with the 6.0-liter engine is manufactured using durable 409 stainless steel throughout and features 3.50-inch mandrel bent pipes for better exhaust gas flow, and a Flow FX ”straight-through” muffler is used for a moderate sound level and maximum performance. Maximum increases on the dyno revealed +21 hp and +23 lb-ft at the rear wheels. This system exits out the side, behind the rear wheel with a 5.00-inch black ceramic tip for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home.This exhaust system was designed for Crew Cab Short Bed trucks with the 6.5-foot bed and is backed by Flowmaster’s Lifetime Limited Warranty.Fits Crew Cab trucks with a 6.5′ bed.

Catalytic Converter Included: No

Catalytic Converter Quantity: 0

Clamping Type: Flat Band

Clamps Included: Yes

Exhaust Series:Flow FX

Exhaust Tip Color: Black

Exhaust Tip Connection: Clamp-On

Exhaust Tip Cut: Angled

Exhaust Tip Diameter: 5.00″

Exhaust Tip Edge: Rolled Edge

Exhaust Tip Finish: Black Ceramic Coating

Exhaust Tip Intercooled: No

Exhaust Tip Length: 12.00″

Exhaust Tip Material: 304 Stainless Steel

Exhaust Tip Quantity: 1

Exhaust Tip Resonated: No

Exhaust Tip Shape: Round

Exhaust Tip Wall: Single Wall

Exit Style: Single Out Side

Finish: Natural

Gasket Or Seal Included: No

Grade Type: Performance

Hangers Included: Yes

Inlet Type: Flanged

Main Piping Diameter: 3.50″

Mount Type: Uses Factory Hangers

Mounting Bracket Included: No

Muffler Body Height: 5.00 Inch

Muffler Body Length: 18.00 Inch

Muffler Body Material: 409 Stainless Steel

Muffler Body Shape: Oval

Muffler Body Width: 8.00 Inch

Muffler Color: Silver

Muffler Finish: Natural

Muffler Flanged Inlet: No

Muffler Flanged Outlet: No

Muffler Included: Yes

Muffler Inlet Connection: Slip-Fit

Muffler Inlet Inside Diameter: 3.50 Inch

Muffler Inlet Location: Center

Muffler Inlet Outside Diameter: 3.63 Inch

Muffler Outlet Connection: Slip-Fit

Muffler Outlet Diameter: 3.50 Inch

Muffler Outlet Location: Center

Muffler Outlet Quantity: 1

Muffler Overall Length: 24.00 Inch

Muffler Part Number: Kit Only

Muffler Quantity: 1

Muffler Series:Flow FX

Muffler Type: Absorption

Pipe Color: Silver

Pipe Material: 409 Stainless Steel

Sound Level: Moderate

Spring Bolt Kit Included: No

Tail Pipe Outlet Outside Diameter: 3.50 Inch

Tail Pipe Quantity: 1

Tail Pipe Quantity: Single

Tail Pipe Tapered Outlet: No

Tip Logo: Embossed

Type: Cat-Back

Valve Included: No

Valve Type: Not Applicable
