Description

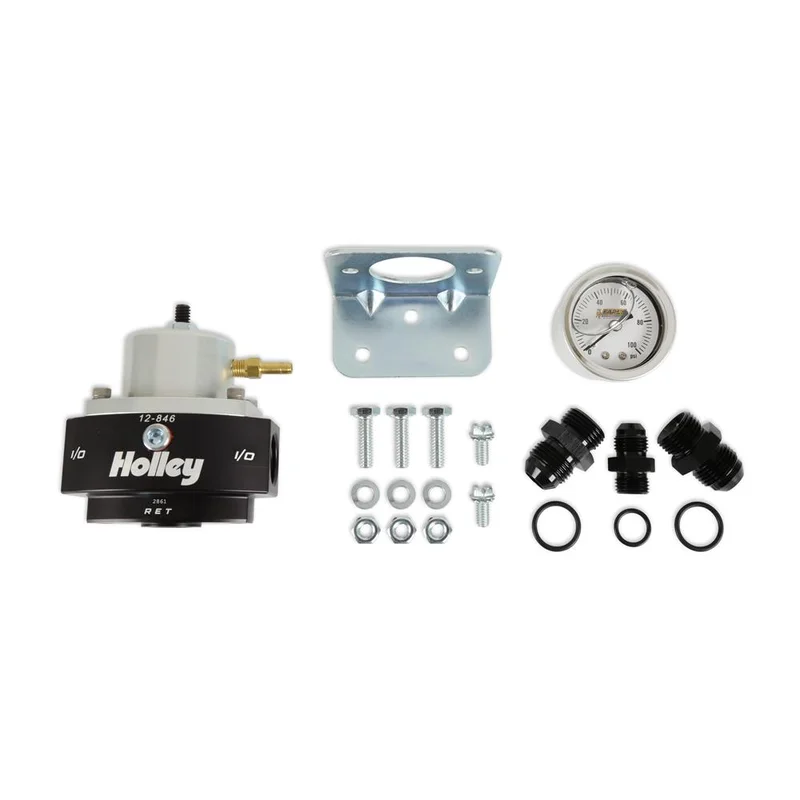

15-65 PSI – Fittings and Gauge IncludedDie Cast aluminum constructionAdjustable from 15-65 psi for precise fuel pressure adjustmentsUsed in return style systems with a line back to the fuel tank8 AN O-ring Inlet, Outlet, and 6 AN O-ring Return Port1/8â? NPT gauge port and Earl’s fuel pressure gauge (100187ERL)1/8″ NPT Boost Reference (1:1) and Barbed FittingMounting bracket includedHolley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-846 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 8 AN in/out ports, a 6 AN return port, a 1/8″ NPT gauge port, and a 1/8″ NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Adjustable: Yes

Color: Black

Fuel Pressure Range:15-65 PSI

Fuel System Type: EFI

Fuel System: EFI

Fuel Type: Gasoline

Gauge Port: Yes

Grade Type: Performance

Inlet Port Diameter:8 ORB

Inlet Quantity: 1

Inlet Size:8 ORB

Inlet Type: ORB

Material: Aluminium

Mounting Hardware Included: Yes

Mounting Type: Bolt On

Outlet Port Diameter:8 ORB

Outlet Quantity: 2

Outlet Size:8 ORB

Outlet Type: ORB

Port Quantity: 4

Pressure Range: 15-65 PSI

Return Size:6 ORB

Style: Bypass
