Description

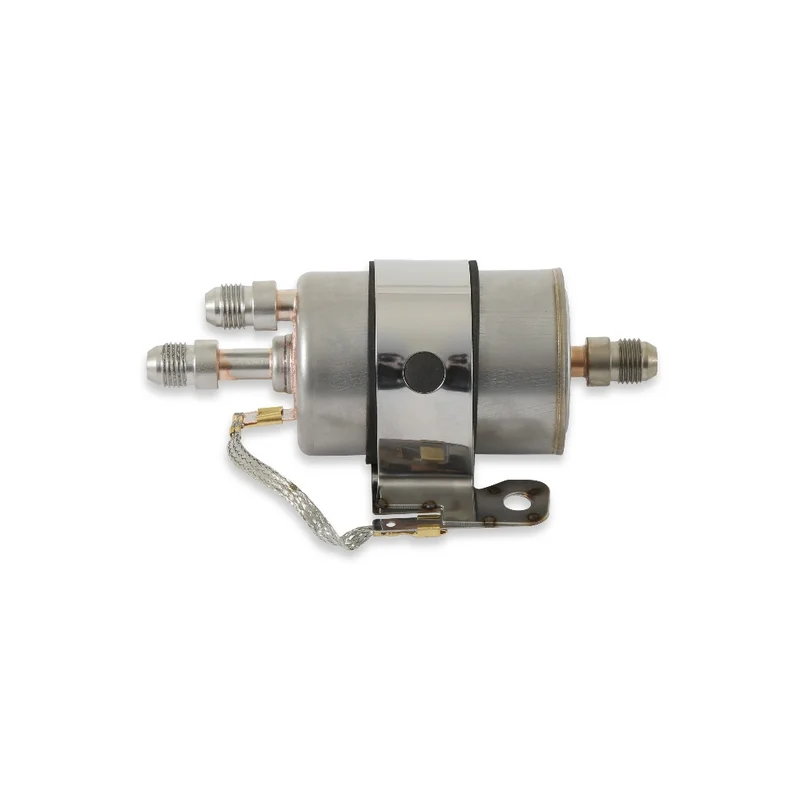

Filter / Regulator Assembly, return style preset at 58 PSI, -6 AN connectionsGM style Filter / Bypass Style RegulatorAll stainless steel construction for improved corrosion resistanceDesigned with one inlet, one outlet, and one returnFixed pressure at 58 psiNominal Micron Rating: 5Can be used with other EFI systems that require 58 psiNot recommended with fuel pumps that flow over 450 LPHAvailable with stock quick connectors or with -6AN male connectionsReturn line required for proper regulator operationHolley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine, and a return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure

Adjustable: No

Fuel System Type: EFI

Fuel System: EFI

Fuel Type: Gas

Gauge Port: No

Grade Type: Performance

Inlet Port Diameter: -6AN

Inlet Quantity: One

Inlet Size: -6 AN

Inlet Type: an

Material: Stainless Steel

Micron: 5

Mounting Hardware Included: No

Mounting Type: Bolt On

Outlet Port Diameter: -6AN

Outlet Quantity: Two

Outlet Size: -6 AN

Outlet Type: an

Port Quantity: 3

Style: Return Style
