Description

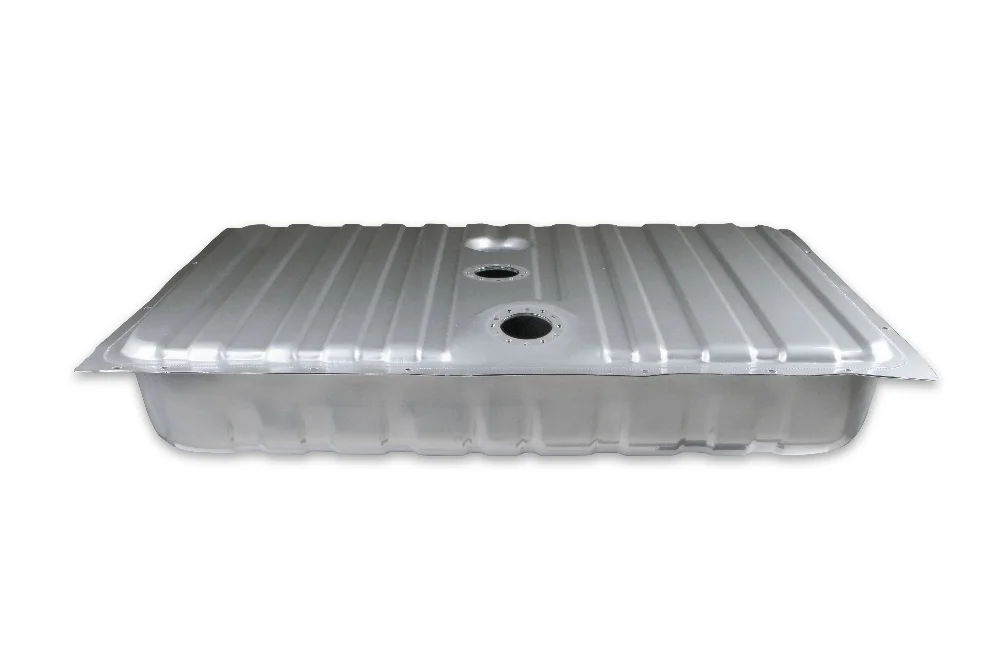

Sniper EFI Fuel Tank System 400 LPHHolley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!***Steel filler neck that extends to rear valance is not included. You must use your existing stock filler neck or purchase the 19-550 replacement filler neck***These tanks are perfect for your next classic truck EFI conversion project as well.Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)Size: 32-3/4″ x 24-1/2″ x 7-1/2″For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.Steel filler neck that extends to rear valance is not included. You must use your existing stock filler neck or purchase the 19-550 replacement filler neck.

Application: 1964-1968 Mustang

Attached Sump: Yes

Baffled Sump: Yes

Color: Silver

Drain Plug: No

Filler Neck Attached: No

Finish: Powdercoated

Free Flow LPH: 400

Fuel Sending Unit Ohms: 73-10 Ohms

Fuel System Compatibility: Electronic Fuel Injection

Fuel System Type: Gasoline

Fuel Tank Coating: Powder Coated

Gallon Capacity: 16

Grade Type: Performance

Lock Ring Included: Yes

Material: Steel

Maximum Flow Rating: 400 LPH

Mounting Straps Included: Yes

New Straps Included: No

O-Ring Included: Yes

Resistance Ohms Empty: 73 82

Resistance Ohms Full: 10 82

Sending Unit Included: Yes

Tank Capacity: 16 GA

Tank Color: Gray

Tank Material: Steel
