Description

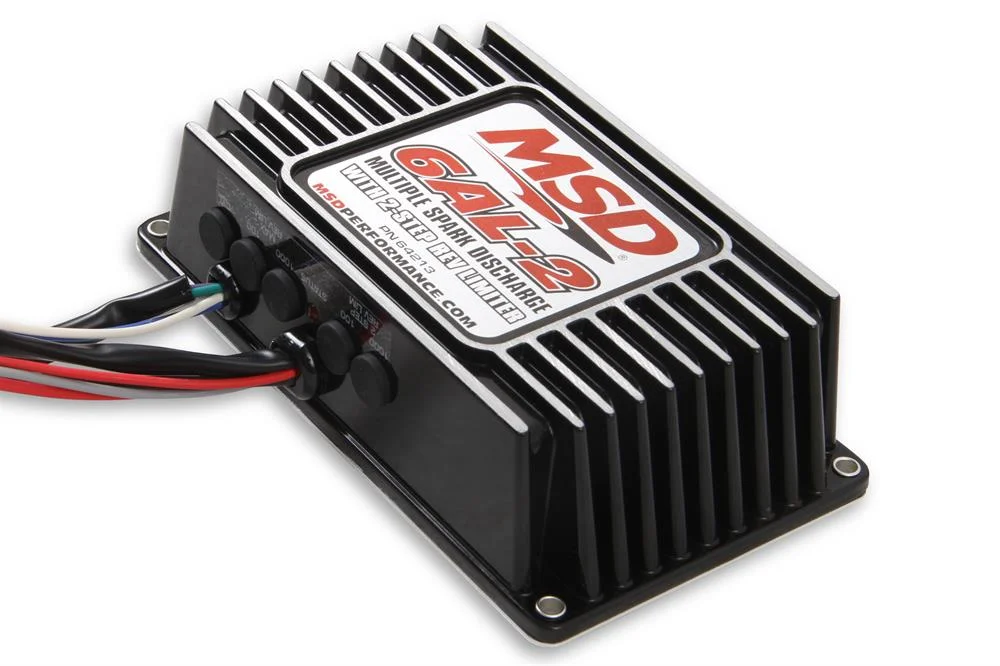

Universal – Built-in 2 Step Rev-Limiter – Rotary DialsMSD is excited to announce the next generation of 6-Series ignition controls – the 6AL-2! The ignition control combines a new housing, new digital controls, and more power in a sleek package. Inside the new cast aluminum housing, you’ll find an advanced micro-controller that manages the built-in two-step rev-limiter. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion.The all-new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.Two more great features are the rev limits! There are two rev limiters, one for high-end overrev protection and another you can activate off a clutch or trans-brake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 rpm increment control!All new housing, same reliable digital circuitry and performance12-18 Volts, Negative Ground12,500 RPM with 14.4 Volts.7 Amp per 1,000 RPMAccepts Hall-effect, points and mag pickup triggersBuilt-in 2-Step rev control adjustable with rotary dialsHigher output with up to 135mJ of spark energyManaged by an efficient digital processor

Color: Black

Connector Gender: Male

Connector Quantity: 1

Current Draw: 1000 RPM

Features: Rev Limiter

Grade Type: Performance

Height: 2″

Ignition Type: Performance

Length: 7″

Maximum RPM: 12,500 RPM

Mount Type: Surface Mount

Mounting Hardware Included: Yes

Primary Voltage: 535

Secondary Voltage: 45,000

Spark Energy (mJ per spark): 135

Terminal Gender: Male Female

Terminal Quantity: 5

Voltage Required: 12-18

Width: 4 Inch
