Description

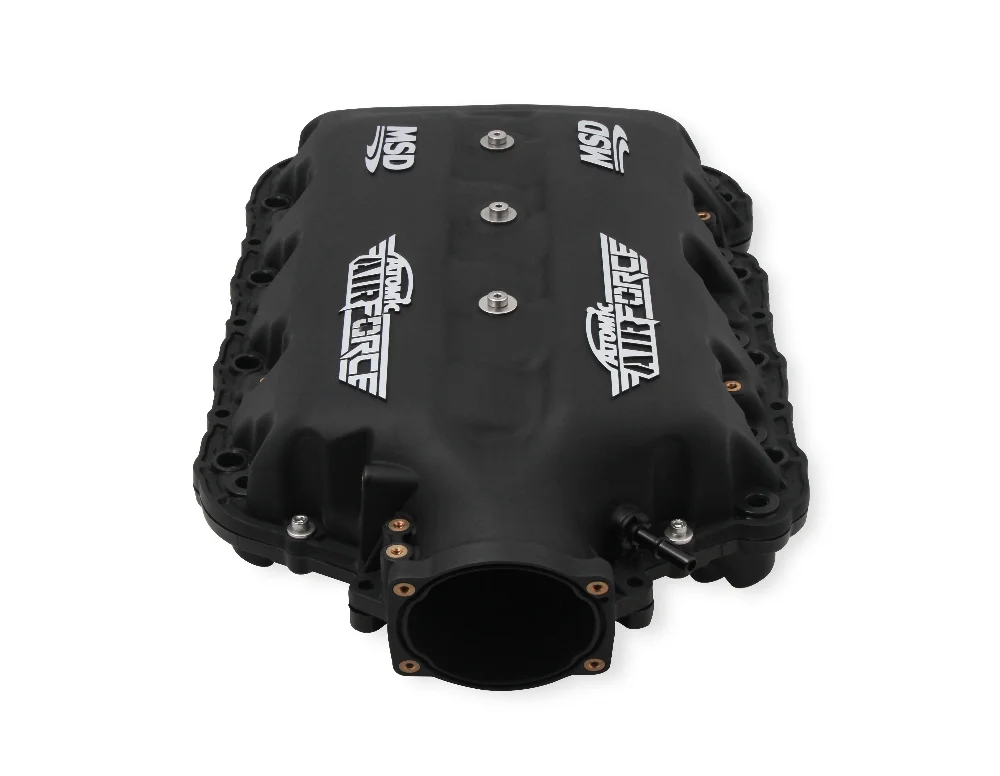

Performance Polymer Intake Manifold for GM Gen-V LT EnginesThe MSD Atomic AirForce intake manifold delivers improved airflow and distribution to improve the performance of stock and modified engines. The unique bell-mouthed runner entrances maximize airflow and minimize shrouding – all while optimizing the available plenum volume for an unobstructed flow path over opposing runners. Thepolymer molded 2-piece design allows for easy access to the runners for porting.The Atomic AirForce LT1 manifold accepts OEM Drive-By-Wire (DBW) and aftermarket Big-Bore DBW throttle bodies – as well as cable operated throttle bodies.Auxiliary fuel rails and port injectors may also be fitted for applications where the capacity of the stock Gasoline Direct Injection (GDI) system has been exceeded.The intake is supplied with new OEM-style bolts, but the use of new OEM-style intake port seals is required.Available with Red, Black and Silver logosCARB Approved, 50 State Legal EO# D-722-3Designed using Computational Fluid Dynamic Modeling to create optimal plenum volume and efficient air flow pathsThe two-piece manifold design provide convenient access to the runners for portingDirect flow path runner design promotes maximum airflow103mm Throttle bore allows the use of large throttle bodies for greater air flowPolymer material resists heat soak and minimizes weightAllows for the use of stock, and aftermarket fuel rails

Basic Operating RPM Range: 4500-7500 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: N/A

CNC Ported: No

Color: Black

Construction: Molded

Cylinder Head Port Shape: Rectangle

Deck Height: 9.24 Inch

EGR Port: No

Engine: GM Gen V LT1

Flange Style: N/A

Fuel Injectors Included: No

Fuel Rail(s) Included: No

Gasket Or Seal Included: Yes

Grade Type: Performance

Intake Port Gasket(s) Included: No

Material: Polymer

Nitrous Bung(s) Included: No

Plenum Finish: Black

Removable Runners: No

Removable Top/Lid: Yes

Single Or Dual Plane Type: Single

Throttle Body Bore Diameter: 105 MM

Throttle Body Gasket Included: No

Throttle Body Included: No

Vacuum Ports: Yes
