Description

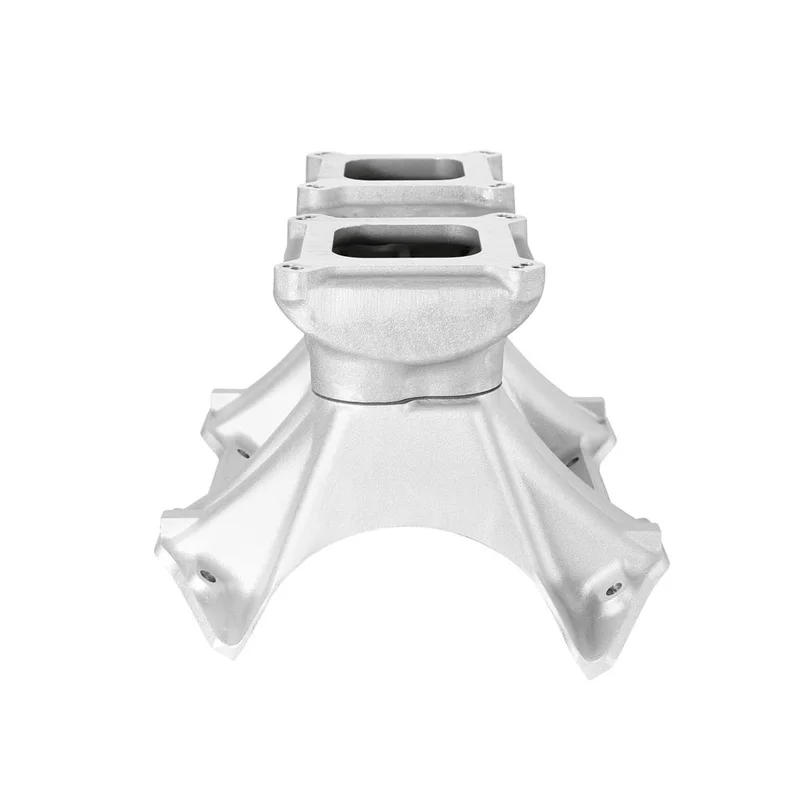

Weiand Hi-Ram Intake – Chrysler Big Block V8If you are not satisfied with a Nostalgia Series intake, we will gladly exchange it or refund your money. Our tech service representatives can be reached at 1-866-464-6553.This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!Weiand Nostalgia series intakes are proudly cast and machined in the USA.HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,500 to 8,000 RPM. The WEIAND Hi-Ram, with it”s patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice!

Basic Operating RPM Range: 2500-8000 RPM

Carburetor Flange: 4150 Square Bore

Carburetor Quantity: 2

Carburetor Studs Included: No

CNC Ported: No

Color: Natural

Construction: Cast

Cylinder Head Port Shape: Rectangle

Deck Height: 10.725 Inch

EGR Port: No

Engine: Chrysler Big Block V8

Flange Style: 4150 Square Bore

Front Maximum Height: 9.5″

Fuel Injectors Included: No

Fuel Rail(s) Included: No

Fuel System Type: Carb

Gasket Or Seal Included: No

Grade Type: Performance

Intake Port Gasket(s) Included: No

Manifold Type: Hi-Ram

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Cast

Rear Maximum Height: 10.31 Inch

Removable Runners: No

Removable Top/Lid: No

Single Or Dual Plane Type: Single

Throttle Body Bore Diameter: 3.6 Inch

Throttle Body Gasket Included: No

Throttle Body Included: No

Vacuum Ports: Yes
