Description

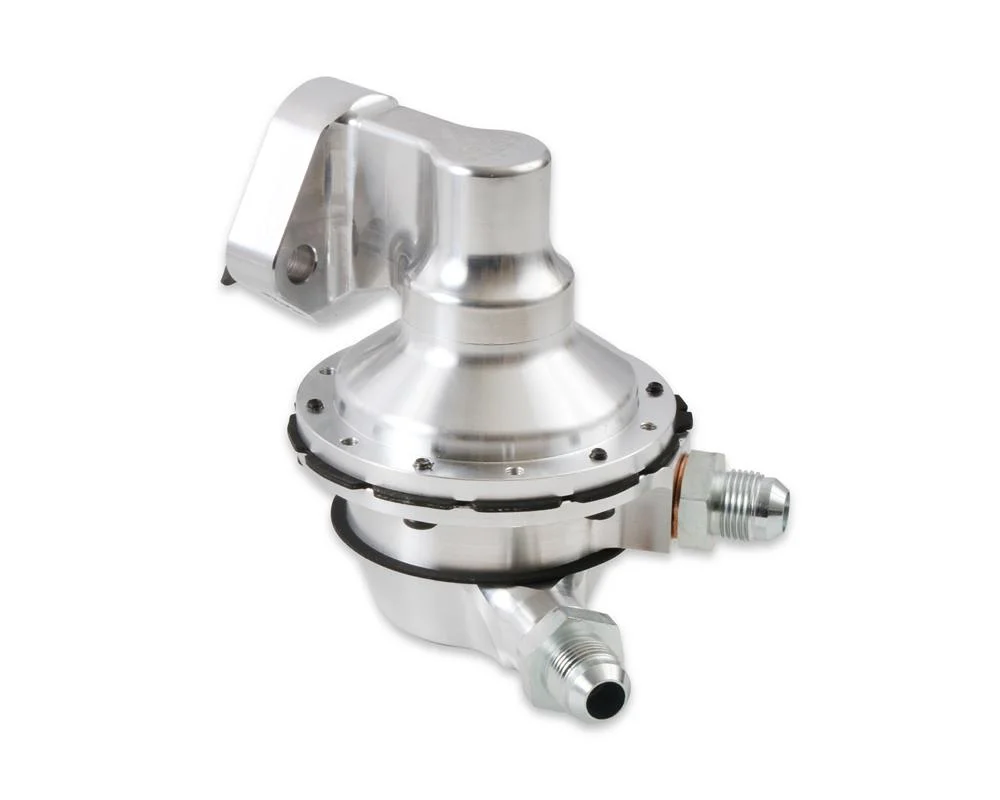

Street/Strip Carbureted ApplicationsFits Big Block Chevy V8s Compatible with GasolineHP series flow 170 GPHMade from 6061-T6 billet aluminum for durability good looksHP series feature a CNC billet finish for good looksMale -8AN inlet and outlet already installedPreset Idle fuel pressure of 7.5 PSIA/N fittings included with all pumpsBases are independently rotatable from the top for ease of installationNo fuel pressure regulator requiredThe HP Billet Mechanical Pumps are constructed from CNC machined 6061-T6 aluminum to provide the utmost strength and superior looks. The HP pumps feature a CNC billet aluminum finish for long lasting good looks. The HP series also feature -8 AN inlet and outlet fittings already installed. The base can be rotated independently from the top so it can be tailored to your application. The HP series has a free-flow number of 170GPH and a pre-set idle fuel pressure of 7.5PSI. No regulator is required.

Application: Chevrolet Big Block

Average Flow Rating: 170 GPH

Color: Silver

Free Flow GPH: 170

Free Flow LPH: 644

Fuel Type: Gasoline

Gasket Or Seal Included: Yes

Grade Type: Performance

Housing Material: Aluminum

Inlet Quantity: 1

Inlet Size: 8 AN Male

Inlet Type: 8 AN

Material: Aluminum

Mounting Hardware Included: No

Mounting Hole Quantity: 2

Outlet Quantity: 1

Outlet Size: 8 AN Male

Outlet Type: 8 AN
