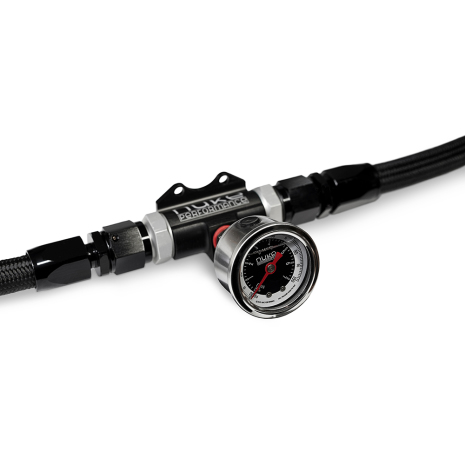

Fuel Line Gauge Adaptor

Place our Fuel Pressure Gauge anywhere along the fuel line, fits all gauges with 1/8npt thread.

With this unique Gauge adaptor you can place any fuel pressure gauge with 1/8npt thread anywhere along the fuel line. Easy access to check your fuel pressure has never been easier.

3/4 UNF Ports, available Fittings to adapt these filters to AN-10, -08 or -06 line.

Technical information :

• 1/8″ NPT thread, fits directly with Nuke Performance fuel pressure gauge.

• Billet aluminum 6082-T6.

• Internal diameter of 17,5mm which does not affect the fuel flow.

• 3/4 UNF Ports, available to AN-6, AN-8 or AN-10 line.

• Laserengraved.

Measurements :

Width : 50 mm

Height : 30 mm

Depth : 35 mm

Thread : 1/8″ NPT Weight : 80 g

* All measurements excluding the supplied fittings.

* The guage fittings are not included – found below.
