Description

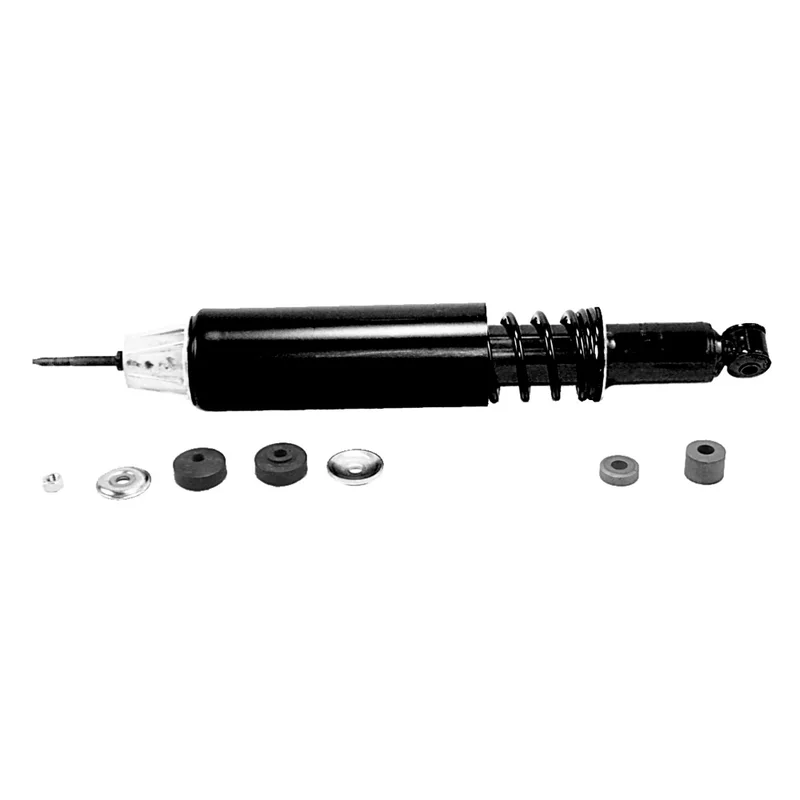

Magnum Severe Service Rear Suspension Shock Absorber and Coil Spring AssemblyMonroe(R) Magnum(R) Severe Service shock absorbers are engineered for hardworking emergency, municipal, fleet and jobsite vehicles. These gas-charged, heavy-duty Monroe shocks feature enhanced components for superior stability and ride control in the toughest environments.
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Compressed Length:314.3 MM
Damping Type:Oil
Dust Shield Included: Yes
Dust Shield Material: Plastic
Extended Length: 20.125″
Gas Charged: Yes
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: Yes
Lower Mount Code: LS26
Lower Mount Type: Loop Bushing and Sleeve Mount – 12MM Sleeve ID X 1.1/2″ Sleeve OAL
Parts Pack(s): P01136,P01344
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Rod End Measuring Point: Base of Stem
Travel Length:196.9 MM
Upper Mount Code: S4
Upper Mount Type: Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread Pitch
