Description

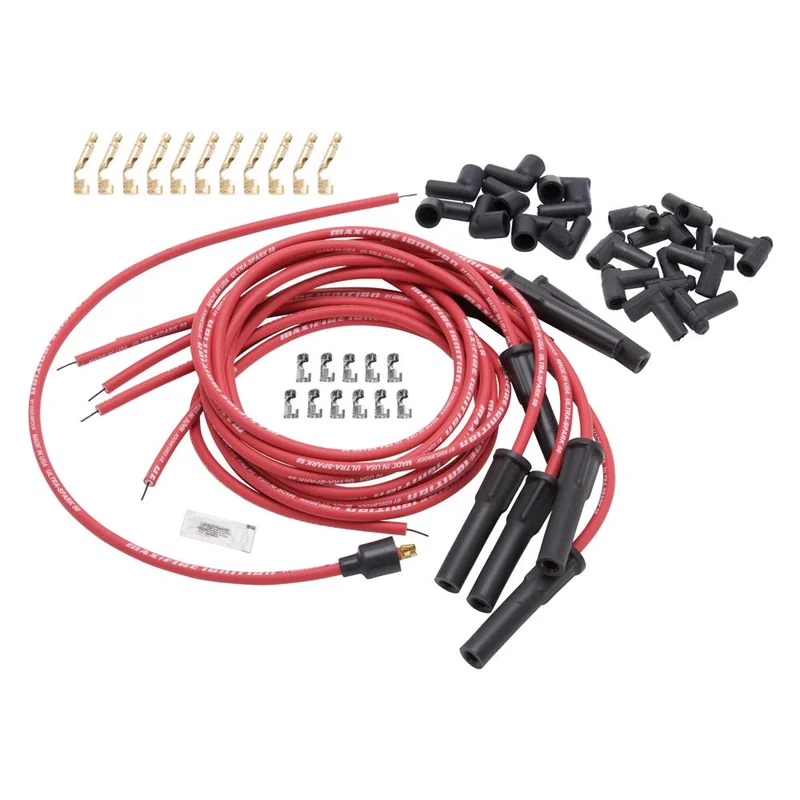

Edelbrock Max-Fire Universal High Performance’s Spark Plug WiresThe Edelbrock #22710 Max-Fire Universal Ultra-Spark 50 spark plug wire sets feature the same high quality as our model specific setsbut give you the flexibility to tailor them to fit your V8 application perfectly. Includes the straight spark plug boot pre-installed from the factory and the 90 Deg boots. The straight boot is a ”Vari-Angle” boot that allows the boot to be bent and hold its position in tight areas to clear headers. The Edelbrock #22710 include early OEM socket style and late style HEI plug distributor terminals to make sure your covered. Comes with the following wire lengths one 53″one 49″two 45″one 41″one 37″ and two 33″as well as 11 points style terminals11 HEI plug style terminals9 straight distributor boots9 90 Deg distributor boots1 distributor to coil wiredielectric grease and installation instructions. Will require the use of a wire crimping tool to complete the installation.

Coil End Boot Color: Black

Core Material: Magnetic Kevlar Core

Distributor Coil End Boot Degree: 90 DD

Distributor Coil End Boot Type: HEI

Distributor Coil End Terminal Type: HEI

Insulation Color: White

Insulation Material: Inner Insulation

Insulation Outside Diameter: 0.23″

Noise Suppression Type: No

Outside Diameter: 8.5 MM

Resistance: 500 82

Spark Plug Boot Material: Compact Silicone

Spark Plug End Boot Color: Black

Spark Plug End Boot Quantity Angled: 6

Spark Plug End Boot Quantity Straight: 2

Spark Plug End Terminal Type: Standard

Spark Plug Wire Resistance: 500

Universal Or Specific Fit: Specific

Wire 1 Length: 22.0 Inch

Wire 2 Length: 28.0 Inch

Wire 3 Length: 32.0 Inch

Wire 4 Length: 32.0 Inch

Wire 5 Length: 40.0 Inch

Wire 6 Length: 41.0 Inch

Wire 7 Length: 41.0 Inch

Wire 8 Length: 44.0 Inch

Wire Separators Included: No
