Description

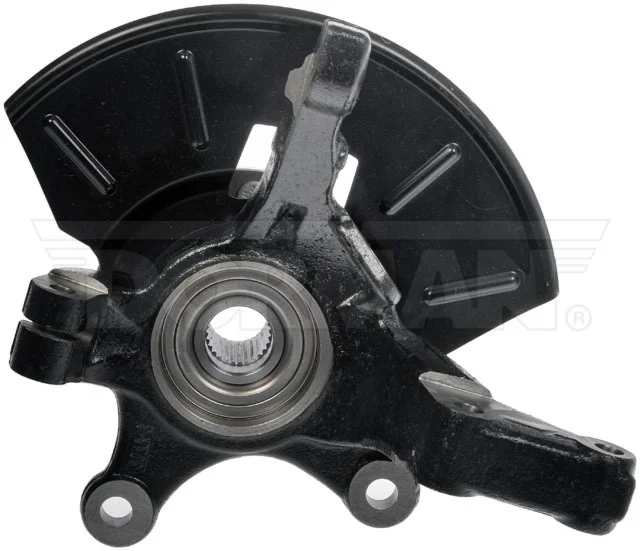

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.Pre-pressed assembly – this complete loaded knuckle kit includes all necessary components ready for installation right out of the boxSaves hours – eliminates the possibility of extended time spent wrestling with individual corroded componentsSimpler solution – no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYersQuality engineering – designed in the United States and backed by a century of automotive aftermarket experience

Axle Included: No

Axle Nut Included: Yes

Bearing Generation: Gen 1

Bearing Type: Ball

Bolt Circle Diameter: 114.30 mm

Brake Pilot Diameter: 140 mm MM

Color: Black

Drive Type: Driven

Finish: Painted

Flange Bolt Hole Diameter: 12.4 mm MM

Flange Bolt Hole Quantity: 5

Flange Diameter: 140 mm MM

Flange Quantity: 1

Grade Type: Standard Replacement

Hub Included: Yes

Hub Pilot Diameter: 55.7 mm MM

Inside Diameter: 30.5 mm MM

Instruction Manual Included: No

Knuckle Bolt Circle Diameter: 114.3 mm MM

Knuckle Bolt Hole Size: 12.4 mm MM

Knuckle Bolt Hole Thread Type: Fine

Knuckle Bolt Thread Pitch:1.5 mm MM

Knuckle Pilot Hole Diameter: 71.5 mm MM

Material: Cast Iron

Mounting Hardware Included: No

Nut Included: Yes

Outside Diameter: 92 mm MM

Package Contents: 1 Axle Nut

Pre-Greased: No

Spline Quantity: 28

Stud Thread Type: Fine

Thread Tolerance: -g/H

Wheel Bolt Thread Pitch:1.5 mm MM

Wheel Pilot Diameter: 66.9 mm MM

Wheel Stud Size: 12 mm MM

Wheel Stud Thread Pitch:1.5 mm MM

Width: 260 mm MM
