Description

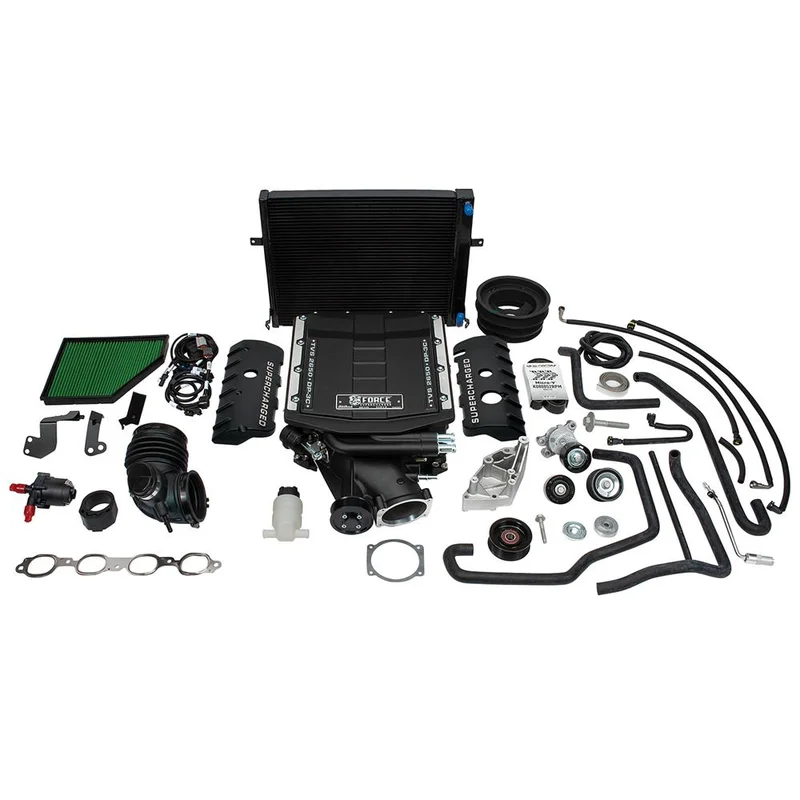

Edelbrock supercharger Stage 1 Street System #155950 is designed for use with the 2016-24 Camaro SS 6.2L LT1 engineThe Edelbrock Supercharger System W/O TUNER #155950 is a 50-state emissions-legal power adder designed for use with the 2016-24 Chevrolet Camaro SS 6.2L LT1. This Stage 1 system features a manifold that houses Eaton’s biggest R2650 TVS rotor assembly with 170-degree high-twist lobesbigger bearings and beefier timing gears for unparalleled efficiency and reliability. This is a true bolt-on supercharger kit that requires no additional modifications to the stock 6.2L engine and fits under the Camaro hood with no cutting or modification. With a dyno-tested output of 609 horsepower and 587 ft-lbs of torquethe increase in power comes with little to no loss in fuel economy thanks to the supercharger’s integrated bypass valve that mitigates parasitic power loss during normal driving. For those who want more powerthe R2650 supercharger can support more than 1 000 horsepower at the flywheel with the right combination of parts. The Edelbrock supercharger for the Camaro has a self-contained lubrication system with a 100 000-mile service intervala high-capacity Dual-Pass 3-Core (DP3C) integrated intercooler and comes finished in a durable black powder-coating. Each kit includes a complete set of preformed hoseshardware and a full-color manual that provides step-by-step instructions for ease of installation (Note: Kit #155950 does not include the handheld tuner). This system is designed and manufactured in the USA and is covered by Edelbrock’s free 3-year/36 000-mile powertrain warranty.

9040: D-215-125

Air Filter Included: Yes

Calibration: No

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Gasket Or Seal Included: Yes

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 150 ML

Outside Pulley Diameter: 4 Inch

Pulley Belt Width: 8-Rib

Quantity: Kit

Rotor Type: Eaton TVS 2650

System Type: Stage 1 – Street System

Tensioner Included: Yes

Transmission Type: Automatic and Manual

Universal Or Specific Fit: Specific

Vehicle Model: Camaro
