Description

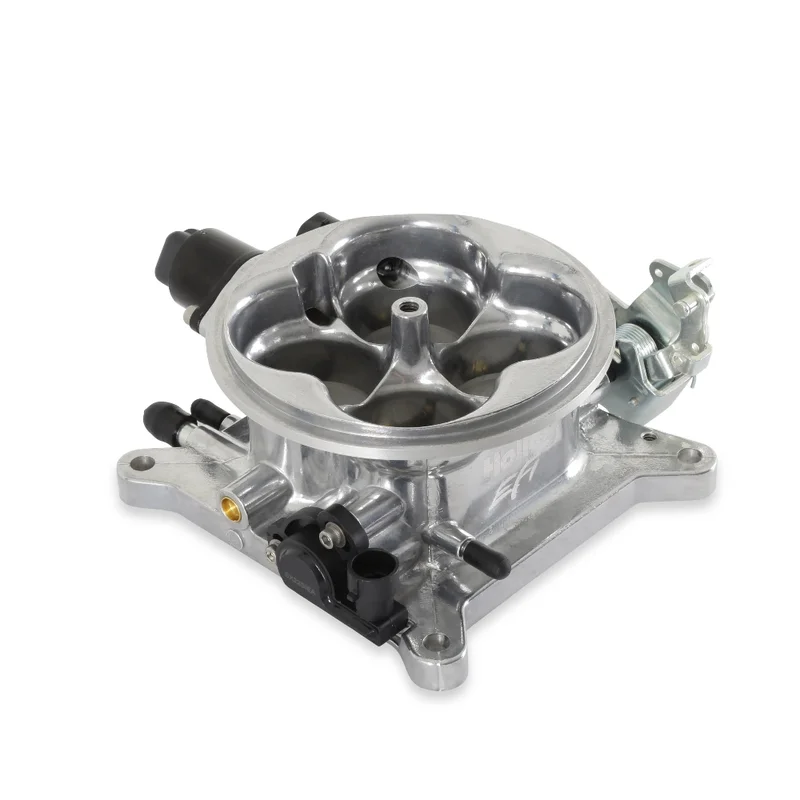

Universal 4BBL 1000CFM 4150 Flange Throttle Body – Polished FinishStandard square bore mounting pattern for installation on various intake manifoldsFlows 1000 CFM to handle high horsepower enginesExclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speedIntegrated TPS, IAC, and Air Temperature SensorHi Flow IAC passages for larger cubic inch engines for idle stabilityFord Transmission kick down Lever for use with Ford automatic transmissionsIntegrated GM 700R4 transmission kick down location, no adapters needed(1) timed spark, (2) 3/8″ and (2) 3/16″ full manifold necessary vacuum ports1.75″ throttle plates mounted to PTFE coated throttle shafts for higher flow and a smoother feelHigh quality die cast aluminum for strength and weight reductionTumble polished finishHolley’s new 1000 CFM throttle body shares the same air entry area design that powers every NASCAR Sprint Cup Seriesâ?¢ car. The throttle body features integrated throttle position, idle air control, and intake air temperature sensors. Ford and GM transmission kick down levers as well as all necessary vacuum ports.

Adjustable: Yes

Barrels: 4

Bore Diameter: 4×1.75″

CFM: 1000

Flange Style: 4150/4160 Square Bore

Fuel Injectors Included: No

Fuel System Type: EFI

Gasket Or Seal Included: No

Grade Type: Performance

Height: 2.80″

Idle Air Control Motor Included: Yes

Mounting Hardware Included: No

Throttle Body Finish: Polished

Throttle Body Material: Cast Aluminum

Throttle Body Spacer Included: No

Throttle Bore: 1.750 inch

Throttle Position Sensor Included: Yes
