Description

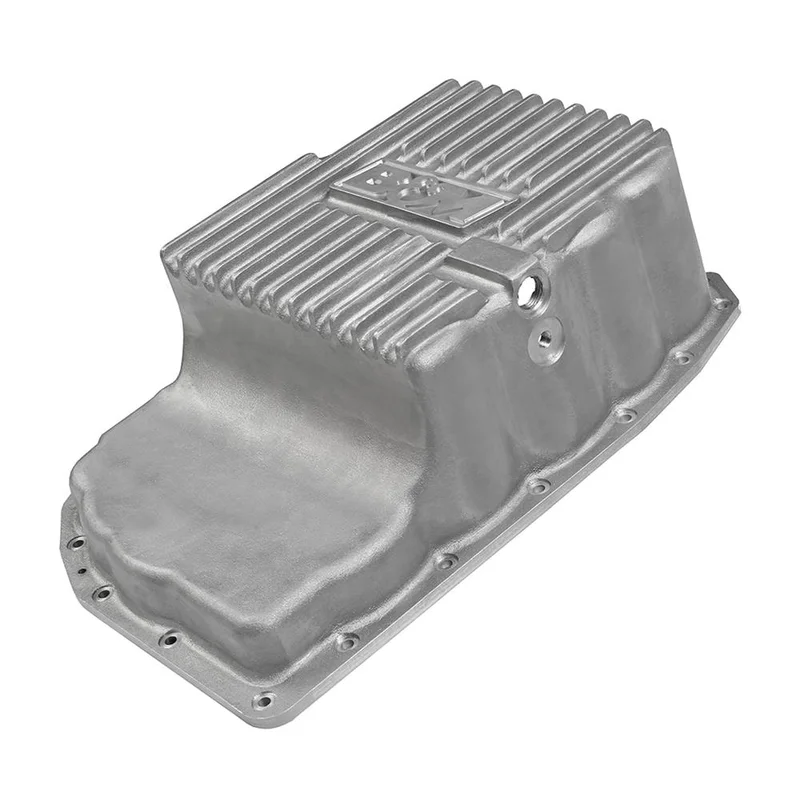

Fits Various 2007-2022 GM 1500 trucks and 2007-2022 Full-Size SUV’s with 6L80E Transmission. Please Verify the Transmission Type Prior to Purchase. Does Not fit Camaro 6L80E transmission. See Part# 70391 for 2010-2015 Camaro 6L80E trans pan.Drain Port Magnetic Drain Plug for Easy ServicingFeatures Temperature Sensor PortAdditional 2-Quart Fluid CapacityImproved Cooling PropertiesLifetime Limited WarrantyIncludes HardwareUtilizes stock filterEasy InstallationB&M QualityOur Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation.Note: Does Not fit 2010-2015 Camaro 6L80E transmission. Please Verify Transmission Type Prior to Purchase. Gasket and filter not included. Since the pan is deeper than stock, the pan has filter supports cast in and will work with stock filters. No deeper filter/extension is needed.

Additional Fluid Capacity (qts): 2

Bolt Count: 18

Bolt/Studs Included: Yes

Capacity: 15 QT

Color: Aluminum

Color/Finish: Natural

Drain Plug Included: Yes

Filler Plug Included: No

Gasket Included: No

Gasket Or Seal Included: No

Grade Type: Performance

Material: A356.0-T6 Aluminum

Mounting Hardware Included: Yes

Oil Pan Gaskets Included: No

Transmission Filter Included: No

Transmission Type: Automatic

Transmission: 6L80E
