Name: Valve Spring
SKU: 3j5to5yyw
Availability: InStock

Description

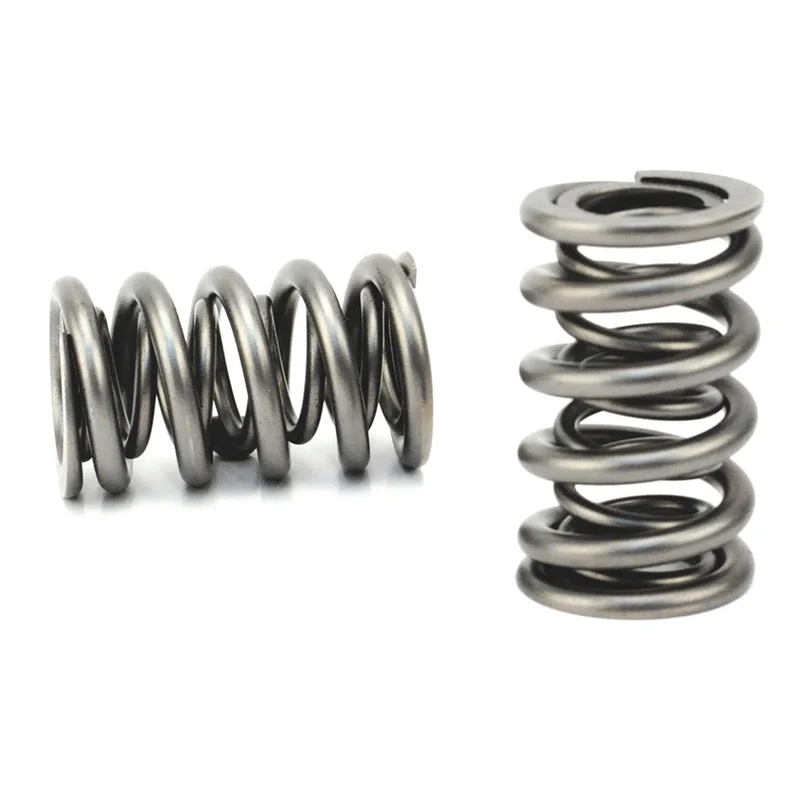

1.550″ High Lift Dual Valve Spring for Racing Applications1.520″ OD Dual Spring 2.150″ Installed Height 1 SpringSet of 16 available under 26547-16.

Coil Bind Height: 1.19″

Compatible .520″ Guide Diameter Spring Seat: 4641-1

Compatible .570″ Guide Diameter Spring Seat: 4642-1

Compatible .640″ Guide Diameter Spring Seat: 4643-1

Compatible Retainer: 1732-1

Compatible Shims: 4757

Compatible Spring Cup (O.D. Locator): N/A

Damper: No

Inner Spring Inside Diameter: 0.784″

Installed Height: 2.15″

Number of Springs: 1

Open Load: 810 LB

Outer Spring Inside Diameter: 1.106 Inch

Outer Spring Outside Diameter: 1.55 Inch

Seat Pressure: 285 LB

Spring Rate: 583

Spring Style: Dual

Valve Spring Series: Dual
